Radiforce EX270W

This Full HD widescreen monitor is ideally suited for viewing images in surgical environments. With its modular design, the EX270W is streamlined as a future-safe platform for evolving environments and further integration
into a wider system.

27-inch LCD module with 1080p (Full HD) resolution (1920 x 1080 pixels).
Powerful LED backlight with over 500 cd/m² luminance for an optimal presentation of critical images.
5 factory calibrated look-up tables for quick and easy adaptation to diverse application and viewing environments.
Modular concept for targeted integration into current and future systems.
Sleek, encapsulated design with laminated safety glass and an unsurpassed IP rating ideally suited to the OR environment.

Features

View Accurate Images in Moments

EIZO’s fully automated stability function makes use of an internal backlight sensor to quickly stabilize the brightness level at startup and to compensate for fluctuations caused by variations in ambient temperature and the passage of time.

Quick and Easy Installation

With 5 factory calibrated look-up tables and integrated mirroring functions, the monitor can be quickly and easily adapted to the local viewing conditions and preferences of the surgeon.

Diagnostic Precision with Factory Adjustment

To ensure the most accurate and consistent shadings possible, EIZO carefully measures and sets every grayscale tone on the production line to offer monitors fully compliant with DICOM Part 14.

Modular Design

EIZO offers a growing range of input modules to allow future-safe connections from legacy or state-of-the-art systems to a streamlined monitor optimized for the high performance needs of the operating room.

Sleek, Encapsulated Housing

With a depth of roughly 4 cm, the sleek, curved housing offers a minimized footprint and no connection clutter to ease installation and save precious space in the operating room environment.

Laminated Safety Glass for Easy Cleaning

The anti-reflective laminated safety glass ensures excellent image quality while protecting the monitor from scratch damage or liquid ingress during surgery or when cleaning and disinfecting the monitor.

To Top

Exceptional High-Brightness and High-Definition

With a native resolution of 1920 x 1080 and a typical brightness well in excess of 600 cd/m2, the monitor can display original, 1080p (Full HD) images without blurring or distortion irrespective of the local ambient lighting conditions.

Mirroring for an Alternative Viewpoint

The mirror viewing function displays the inverse image (horizontal or vertical) of the original video signal to support the viewing direction of the surgical assistant.

Comfortably View from Any Angle

Wide viewing angles allow the monitor to be viewed from the side with minimal color shift, thus offering a quality image to multiple persons watching from different perspectives simultaneously.

Fanless Silent Design

Engineered to dissipate heat without a fan, the EX270W generates no distracting noises and does not circulate dust and germs or disturb the controlled laminar airflow within the operating room.

Arm Mountable VESA Compliance

The monitor can be easily mounted onto new or existing VESA-compliant suspension units and flexibly positioned with the forward spacer and positioning rail mount accessories.

Customer Assurance with Medical Standards

The monitor meets the strictest medical, safety, and EMC emission standards.

To Top

Specifications

General

Model Variations	EX270W: with preinstalled TRM000-DVI input modul
Cabinet Color	White
Certifications & Standards (Please contact EIZO for the latest information.)	CE (Medical Device Directive), IEC/EN60601-1 (2nd edition), IEC/EN60601-1 (3rd edition), CAN/CSA C22.2 No. 601.1-M90, CAN/CSA C22.2 No. 60601-1-08, UL60601-1, FCC-B, RCM, RoHS, WEEE
Supplied Accessories	AC power supply to medical standards, power cables (en, us, jp), signal cable (DVI-D single link), TRM0000-DVI (DVI input module preinstalled in factory), forward spacer, positioning rail, mounting screws, Utility Disk (Instructions for Use)

Panel

Type	Color TFT LCD Panel (IPS)
Backlight	LED
Size	68.6 cm / 27″ (686 mm diagonal)
Native Resolution	1920 x 1080 (16:9 aspect ratio)
Viewable Image Size (H x V)	597.8 x 336.3 mm
Pixel Pitch	0.3114 x 0.3114 mm
Display Colors	8-bit colors: 16.77 million colors
Viewing Angles (H / V, typical)	178° / 178°
Brightness (typical)	600 cd/m²
Contrast Ratio (typical)	1000:1
Response Time (typical)	8 ms (midtone)

Video Signals

Input Terminals	DVI-D x 1 (TRM0000-DVI), RJ45 x 1 (TRM0000-TDL), M12 x 1 (TRM0000-M12)
Digital Scanning Frequency (H / V)	V: 50-64 Hz (DVI Single Link)

Interface Specifications

Input Performance	DVI single link, 50-64 Hz

Power

Power Requirements	AC adapter input: 100 – 240 V: 50 – 60 Hz Monitor input (M12): 24 VDC, 2.5 A
Maximum Power Consumption	55 W
Power Save Mode	5.2 W (lamp off mode) 20.6 W (lamp dimmed mode)
Power Management	DVI DMPM

Features & Functions

Sensor	Backlight and temperature sensor
OSD Languages	English

Environmental Requirements

Degree of Protection	Front surface: IP65 Rear housing: IP42 (TRM0000-DVI) IP41 (TRM0000-TDL) IP65 (TRM0000-M12) IP55 (rear housing frame interface)

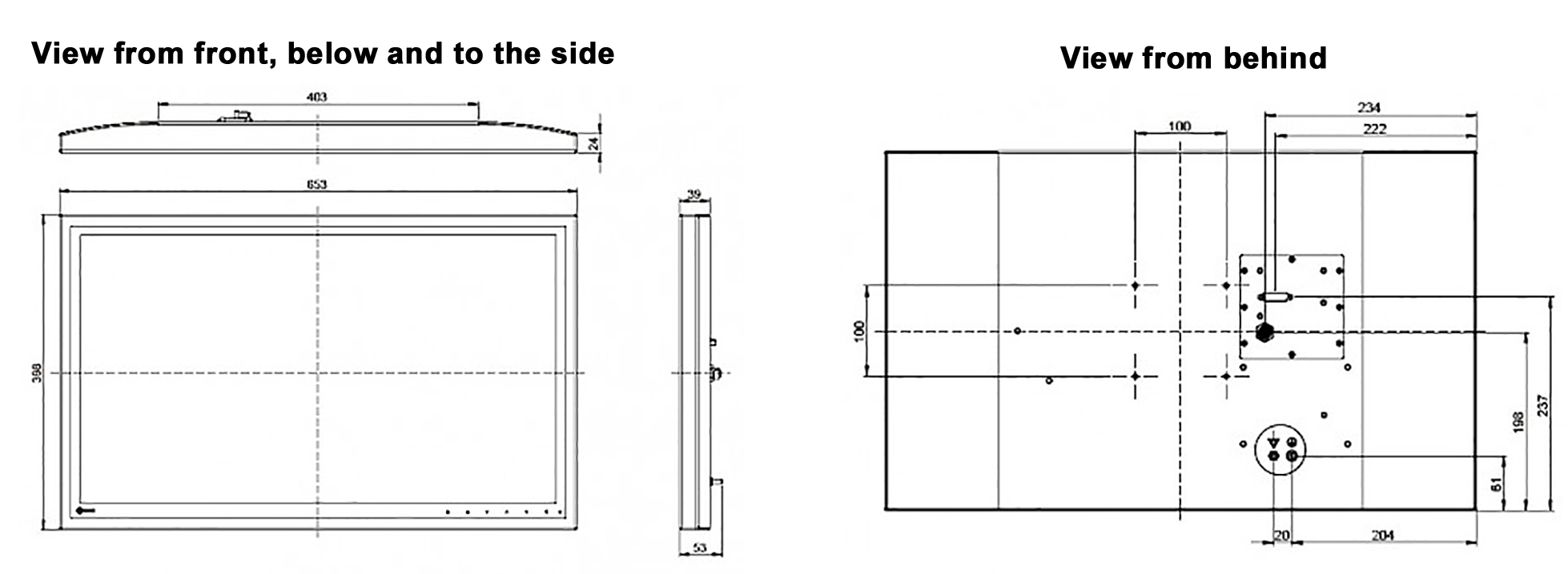

Physical Specifications

Net Weight (Without Stand)	10 kg
Hole Spacing (VESA Standard)	100 x 100 mm (added flexibly with forward spacer and positioning rail adapter)
