RadiForce LS580W

1. 1
2. 2
3. 3

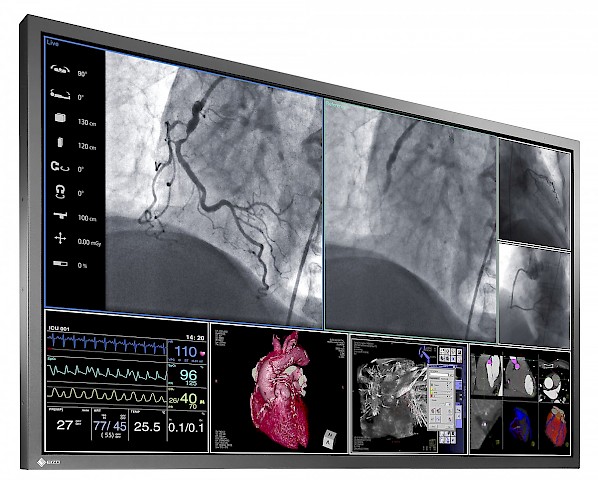

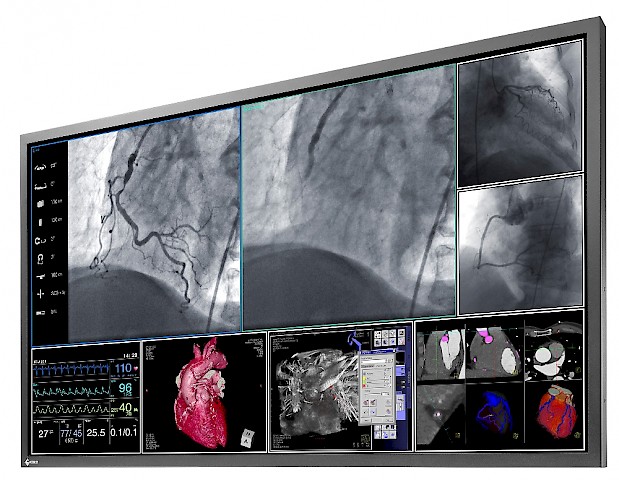

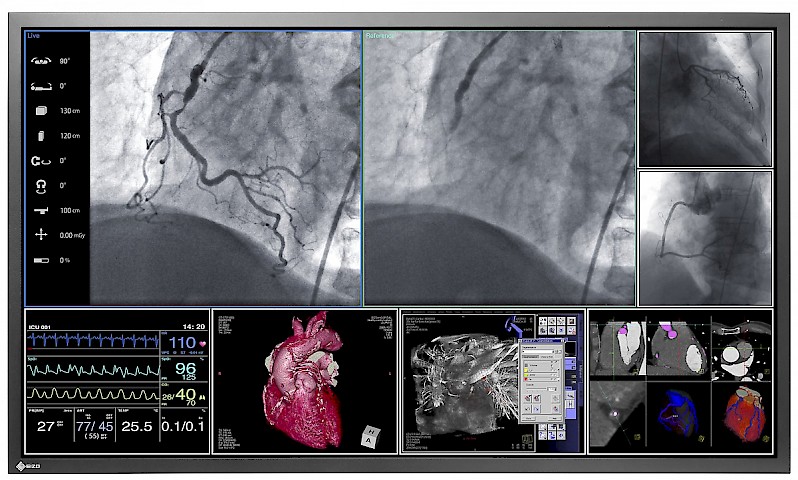

58 inch viewing area enables a new dimension in medical imaging allowing high flexibility in arranging different screen layouts. Important pictures can be scaled to the desired size; less important information can be moved out of the focus. The LS580W supports life time luminance stability, gamma curves match DICOM/CIE recommendations. The display can be mounted to ceiling suspensions.

• Large viewing area, 58”.
• Fully Automated Stability through the Integrated Stability System (ISS).
• DICOM/CIE compliant grayscale response built into the monitor.
• Integrated uniformity correction for homogenous luminance.
• Redundant power supplies for backlight and monitor electronic.
• 5 user defined 11-bit look-up tables adaptable to diverse reading and viewing environments.
• Gamma response calibrated during manufacturing to provide consistent image quality from one monitor to the next.

Features

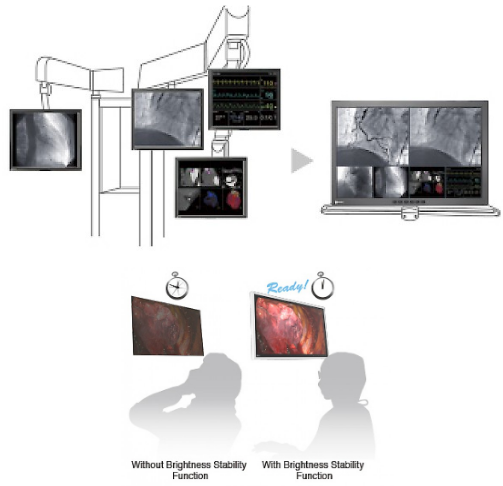

Everything in a Single Glance

Large widescreen monitors with high resolution can be used instead of single 1 Megapixel monitors in ceiling suspensions. Compared with multi-monitor scenarios, these large screen monitors have no regional color differences or obtrusive bezels, thus reducing eye fatigue and the potential for distraction.

View Accurate Images in Moments

EIZO’s fully automated stability function makes use of an internal backlight sensor to quickly stabilize the brightness level at startup and to compensate for fluctuations caused by variations in ambient temperature and the passage of time.

Ensure Continued Operation

Redundant power supplies and backlights as well as two DVI inputs give the monitor a high degree of operational reliability for creating a fail-safe environment. A monitoring function can be configured to notify the X-ray system in the event operating conditions become critical or a component fails.

Work Safely with Minimal Picture Delay

With images displayed on the screen in real time, time critical aspects of image distribution are addressed to ensure e.g. safe catheter localization during insertion into an artery.

Comfortably View from Any Angle

Wide viewing angles allow the monitor to be viewed from the side with minimal color shift, thus offering a quality image to multiple persons watching from different perspectives simultaneously.

Diagnostic Precision with Factory Adjustment

To ensure the most accurate and consistent shadings possible, EIZO carefully measures and sets every grayscale tone on the production line to offer monitors fully compliant with DICOM Part 14.

Maintain the Precision

Monitor calibration can be carried out to maintain DICOM Part 14 compliance for rendering consistency over time.

To Top

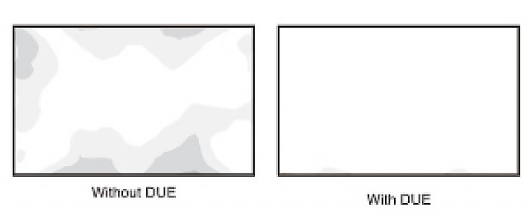

Brightness Uniformity for a Steadier Image Across the Screen

The Digital Uniformity Equalizer (DUE) function provides optimum backlight luminance uniformity which is considered difficult to attain due to the characteristics of LCD monitors, especially with larger screen sizes.

Keep Your Monitor Lit Longer

The monitor is equipped with two independent LED backlights that offer a significantly longer service life over conventional CCFL backlights. In addition, you can maintain high brightness while simultaneously lowering power consumption. Since the LED backlights are mercury-free, they will also reduce any potential impact on the environment when they are disposed of.

Arm Mountable VESA Compliance

VESA compliance to be attached to existing mounting accessories.

Customer Assurance with Medical Standards

The monitor meets the strictest medical, safety, and EMC emission standards.

To Top

Specifications

To Top

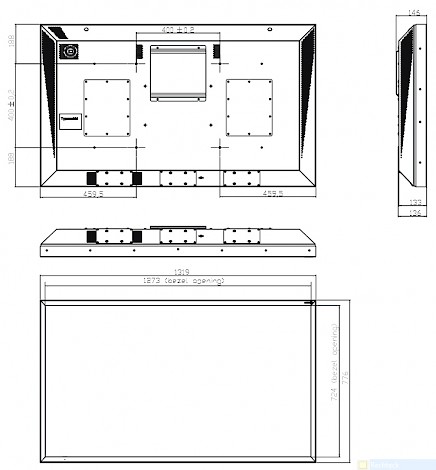

Dimensions
